Phoenix Contact
3036547
Fuse terminal block
Manufacturer part number: 3036547
Serie: Zekeringsaansluitklem
Type: ST 4-HESILED 24 (5X20)
EAN-code: 4017918890483
SKU Omnical: 1015632
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZTW
$
1,568.09
per 100 items
$
1,321.90
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

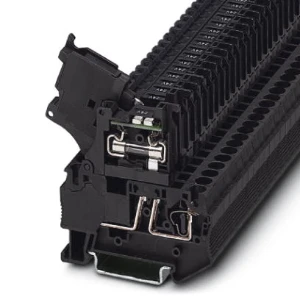

3036547 Phoenix Contact Fuse terminal block
Phoenix Contact Fuse terminal block ST 4-HESILED 24 (5X20)
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Width
(mm)
6.15
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.08 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section solid-core
(mm²)
0.08 - 6
Rated voltage
(V)
24
Type of electrical connection 1
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.2
Length
(mm)
61.5
Closing plate required
No
Colour
Black
Height
(mm)
61.5
Depth
(mm)
63.38
Stock and logistics
Height
0.068 m
Width
0.079 m
Depth
0.288 m
Packaging
box
Weight
0.015 kg
HS code
85369095
Country of Origin
PL
