Phoenix Contact
3037818

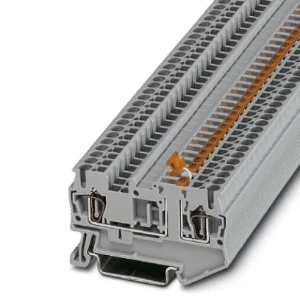

(Knife) disconnect terminal block
Manufacturer part number: 3037818
Serie: Messcheidingsklem
Type: ST 2,5-MT BU
EAN-code: 4017918908560
SKU Omnical: 2051299
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZTW
$
460.38
per 100 items
$
388.10
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3037818 Phoenix Contact (Knife) disconnect terminal block
Phoenix Contact (Knife) disconnect terminal block ST 2,5-MT BU
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.08 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 0.14
Connectable conductor cross section solid-core
(mm²)
0.08 - 4
Rated current In
(A)
20
Width
(mm)
5.2
Rated voltage
(V)
400
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of clamp positions per level
2
Internally connected stages
Yes
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
36.5
Closing plate required
Yes
Colour
Blue
Type of cross disconnection
None
With integrated test socket
No
Length
(mm)
60.5
Height
(mm)
60.5
Depth
(mm)
36.5
Stock and logistics
Height
0.05 m
Width
0.071 m
Depth
0.272 m
Packaging
box
Weight
0.008 kg
HS code
85369010
Country of Origin
DE
