Phoenix Contact
3044128

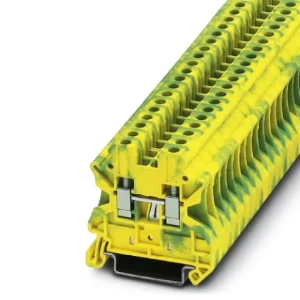

Ground terminal block
Manufacturer part number: 3044128
Serie: Aardklem
Type: UT 4-PE
EAN-code: 4017918960407
SKU Omnical: 1015746
Stock:
767 items.
Delivery time: 1-2 business days.
InStock
ZTV
€
370,91
per 100 items
€
312,68
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3044128 Phoenix Contact Ground terminal block
Phoenix Contact Ground terminal block UT 4-PE
Datasheet
PEN function possible
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 4
Connectable conductor cross section solid-core
(mm²)
0.14 - 6
Connectable conductor cross section multi-wired
(mm²)
0.14 - 6
Width
(mm)
6.2
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 110
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.2
Height at lowest possible mounting height
(mm)
46.9
Length
(mm)
47.7
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
47.7
Depth
(mm)
46.9
Stock and logistics
Height
0.055 m
Width
0.062 m
Depth
0.322 m
Packaging
box
Weight
0.013 kg
HS code
85369010
Country of Origin
DE
