Phoenix Contact
3075728

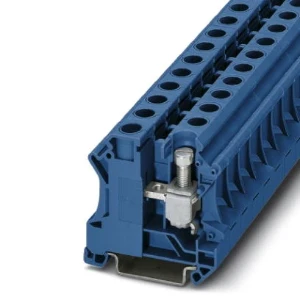

Multi level installation terminal block
Manufacturer part number: 3075728
Serie: Installatieklem
Type: UTI 16 BU
EAN-code: 4046356518031
SKU Omnical: 2169711
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZTV
€
301,31
per 100 items
€
254,00
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3075728 Phoenix Contact Multi level installation terminal block
Phoenix Contact Multi level installation terminal block UTI 16 BU
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
6 - 16
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
6 - 16
Connectable conductor cross section solid-core
(mm²)
6 - 25
Connectable conductor cross section multi-wired
(mm²)
6 - 16
Rated current In
(A)
76
Width
(mm)
12.15
Rated voltage
(V)
400
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of potentials
1
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V2
Width/grid dimension
(mm)
12.2
Height at lowest possible mounting height
(mm)
50.5
Length
(mm)
51
Closing plate required
No
Basic colour
Blue
PE-function
No
With N-disconnect slide
No
N function possible
No
Height
(mm)
51
Depth
(mm)
49.85
Stock and logistics
Height
0.06 m
Width
0.13 m
Depth
0.26 m
Packaging
box
Weight
0.028 kg
HS code
85369010
Country of Origin
CN
