Phoenix Contact
3076032

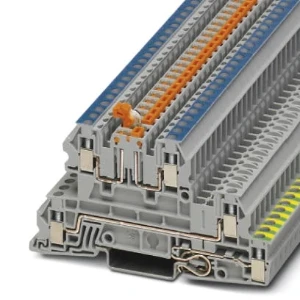

Multi level installation terminal block
Manufacturer part number: 3076032
Serie: Installatie-aardklem
Type: UTI 2,5-PE/L/NTB
EAN-code: 4046356644020
SKU Omnical: 2169710
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZTV
€
667,59
per 100 items
€
562,78
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3076032 Phoenix Contact Multi level installation terminal block
Phoenix Contact Multi level installation terminal block UTI 2,5-PE/L/NTB
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 4
Rated current In
(A)
21
Width
(mm)
5.15
Rated voltage
(V)
400
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of potentials
2
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
51.5
Length
(mm)
93.5
Closing plate required
Yes
Basic colour
Grey
PE-function
Yes
With N-disconnect slide
Yes
N function possible
Yes
Height
(mm)
93.5
Depth
(mm)
51.15
Stock and logistics
Height
0.06 m
Width
0.105 m
Depth
0.27 m
Packaging
box
Weight
0.021 kg
HS code
85369010
Country of Origin
DE
