Phoenix Contact
3076045
Multi level installation terminal block
Manufacturer part number: 3076045
Serie: Installatie-etageklem
Type: UTI 6-L/N
EAN-code: 4046356817660
SKU Omnical: 3063541
Stock: 0.
Estimated lead time: 24 days *
PreOrder
ZTV
€
590,95
per 100 items
€
498,17
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

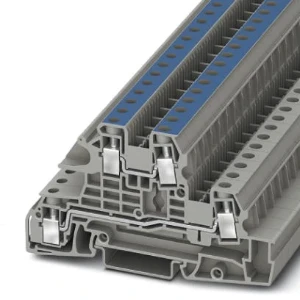

3076045 Phoenix Contact Multi level installation terminal block
Phoenix Contact Multi level installation terminal block UTI 6-L/N
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 10
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section solid-core
(mm²)
0.2 - 10
Connectable conductor cross section multi-wired
(mm²)
0.2 - 10
Rated current In
(A)
38
Width
(mm)
8.15
Rated voltage
(V)
400
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of potentials
2
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
8.2
Height at lowest possible mounting height
(mm)
51.5
Length
(mm)
95
Closing plate required
Yes
Basic colour
Grey
PE-function
No
With N-disconnect slide
No
N function possible
No
Height
(mm)
95
Depth
(mm)
51.15
Stock and logistics
Height
0.065 m
Width
0.134 m
Depth
0.311 m
Packaging
box
Weight
0.026 kg
HS code
85369010
Country of Origin
PL
