Phoenix Contact
3208746

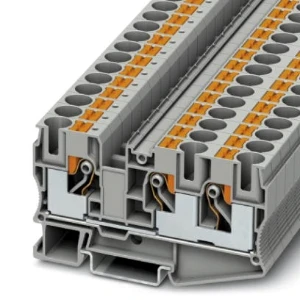

Feed-through terminal block
Manufacturer part number: 3208746
Serie: Aansluitklem
Type: PT 10-TWIN
EAN-code: 4046356643610
SKU Omnical: 1148676
Stock:
96 items.
Delivery time: 1-2 business days.
InStock
ZTW
$
434.11
per 100 items
$
365.96
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3208746 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block PT 10-TWIN
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 16
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 0.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 16
Rated current In
(A)
57
Width
(mm)
10.2
Rated voltage
(V)
1000
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of levels
1
Number of clamp positions per level
3
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 110
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
10.2
Height at lowest possible mounting height
(mm)
49.5
Length
(mm)
88.9
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Grey
Internally connected stages
Yes
Height
(mm)
88.9
Depth
(mm)
49.5
Stock and logistics
Height
0.077 m
Width
0.182 m
Depth
0.278 m
Packaging
box
Weight
0.037 kg
HS code
85369010
Country of Origin
CN
