Phoenix Contact
3209515
Feed-through terminal block
Manufacturer part number: 3209515
Serie: Aansluitklem
Type: PTU 2,5-TWIN
EAN-code: 4046356802079
SKU Omnical: 2170051
Stock: 0.
Estimated lead time: 18 days *
PreOrder
ZTW
€
118,10
per 100 items
€
99,56
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

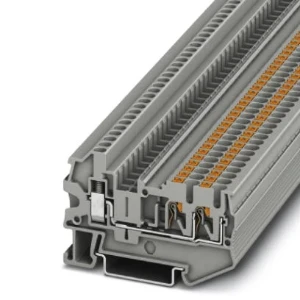

3209515 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block PTU 2,5-TWIN
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Rated current In
(A)
24
Width
(mm)
5.2
Rated voltage
(V)
800
Type of electrical connection 1
Other
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
3
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
42.8
Length
(mm)
65.3
Closing plate required
Yes
Colour
Grey
Internally connected stages
Yes
Height
(mm)
65.3
Depth
(mm)
42.8
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
0.053 m
Width
0.092 m
Depth
0.219 m
Packaging
box
Weight
0.009 kg
HS code
85369010
Country of Origin
PL
