Phoenix Contact
3209594

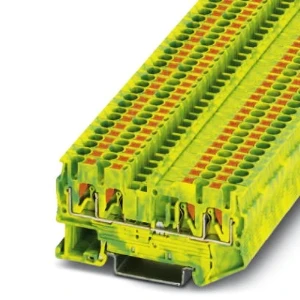

Ground terminal block
Manufacturer part number: 3209594
Serie: Aardklem
Type: PT 2,5-QUATTRO-PE
EAN-code: 4046356329842
SKU Omnical: 1118037
Stock:
775 items.
Delivery time: 1-2 business days.
InStock
ZTW
$
484.42
per 100 items
$
408.37
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3209594 Phoenix Contact Ground terminal block
Phoenix Contact Ground terminal block PT 2,5-QUATTRO-PE
Datasheet
PEN function possible
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 4
Width
(mm)
5.2
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of levels
1
Number of clamp positions per level
4
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
35.3
Length
(mm)
72.2
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
72.2
Depth
(mm)
35.3
Stock and logistics
Height
0.049 m
Width
0.095 m
Depth
0.27 m
Packaging
box
Weight
0.011 kg
HS code
85369010
Country of Origin
DE
