Phoenix Contact
3210499
Feed-through terminal block
Manufacturer part number: 3210499
Serie: Meeretageklem
Type: PT 2,5-3L
EAN-code: 4046356422574
SKU Omnical: 1116088
Stock:
1,864 items.
Delivery time: 1-2 business days.
InStock
ZTW
$
544.60
per 100 items
$
459.10
per 100 items
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

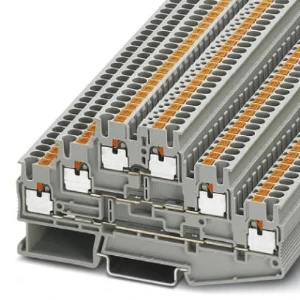

3210499 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block PT 2,5-3L
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 0.14
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Rated current In
(A)
20
Width
(mm)
5.2
Rated voltage
(V)
500
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of levels
3
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
56.4
Length
(mm)
102
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Grey
Internally connected stages
No
Height
(mm)
102
Depth
(mm)
56.4
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
0.064 m
Width
0.108 m
Depth
0.267 m
Packaging
box
Weight
0.018 kg
HS code
85369010
Country of Origin
PL
