Phoenix Contact
3213947

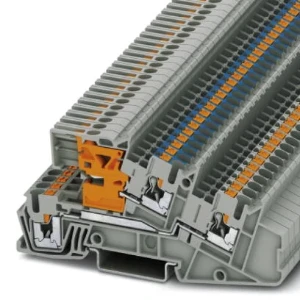

Multi level installation terminal block
Manufacturer part number: 3213947
Serie: Installatie-etageklem
Type: PTI 2,5-L/NT
EAN-code: 4046356609647
SKU Omnical: 2167786
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZTW
€
272,27
per 100 items
€
229,52
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3213947 Phoenix Contact Multi level installation terminal block
Phoenix Contact Multi level installation terminal block PTI 2,5-L/NT
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 4
Rated current In
(A)
24
Width
(mm)
5.15
Rated voltage
(V)
400
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of potentials
2
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
50.5
Length
(mm)
101
Closing plate required
Yes
Basic colour
Grey
PE-function
No
With N-disconnect slide
Yes
N function possible
Yes
Height
(mm)
100.9
Depth
(mm)
48.691
Stock and logistics
Height
0.055 m
Width
0.112 m
Depth
0.267 m
Packaging
box
Weight
0.015 kg
HS code
85369010
Country of Origin
DE
