Phoenix Contact
3213956
Multi level installation terminal block
Manufacturer part number: 3213956
Serie: Installatie-etageklem
Type: PTI 2,5-L/NTB
EAN-code: 4046356609517
SKU Omnical: 1142788
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZTW
€
472,92
per 100 items
€
398,67
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

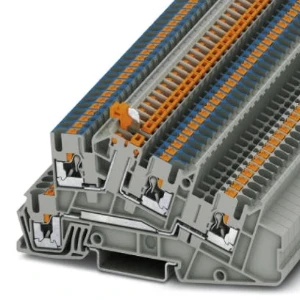

3213956 Phoenix Contact Multi level installation terminal block
Phoenix Contact Multi level installation terminal block PTI 2,5-L/NTB
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 4
Rated current In
(A)
24
Width
(mm)
5.15
Rated voltage
(V)
400
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of potentials
2
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
50.5
Length
(mm)
101
Closing plate required
Yes
Basic colour
Grey
PE-function
No
With N-disconnect slide
Yes
N function possible
Yes
Height
(mm)
100.9
Depth
(mm)
48.699
Colour
Grey
Stock and logistics
Height
0.058 m
Width
0.113 m
Depth
0.27 m
Packaging
box
Weight
0.016 kg
HS code
85369010
Country of Origin
DE
