Phoenix Contact
3213972

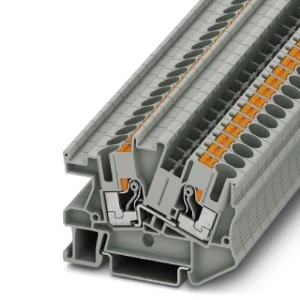

Multi level installation terminal block
Manufacturer part number: 3213972
Serie: Installatieklem
Type: PTI 6
EAN-code: 4046356609340
SKU Omnical: 2167795
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZTW
€
159,22
per 100 items
€
134,22
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3213972 Phoenix Contact Multi level installation terminal block
Phoenix Contact Multi level installation terminal block PTI 6
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 10
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section solid-core
(mm²)
0.5 - 10
Connectable conductor cross section multi-wired
(mm²)
0.5 - 10
Rated current In
(A)
41
Width
(mm)
8.15
Rated voltage
(V)
800
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of potentials
1
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
8.2
Height at lowest possible mounting height
(mm)
50
Length
(mm)
66
Closing plate required
Yes
Basic colour
Grey
PE-function
No
With N-disconnect slide
No
N function possible
No
Height
(mm)
66.015
Depth
(mm)
48.5
Stock and logistics
Height
0.057 m
Width
0.113 m
Depth
0.312 m
Packaging
box
Weight
0.016 kg
HS code
85369010
Country of Origin
PL
