Phoenix Contact
3214029
Multi level installation terminal block
Manufacturer part number: 3214029
Serie: Installatieklem
Type: PTI 16/S
EAN-code: 4046356702270
SKU Omnical: 2535874
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZTW
€
2,46
per item
€
2,07
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

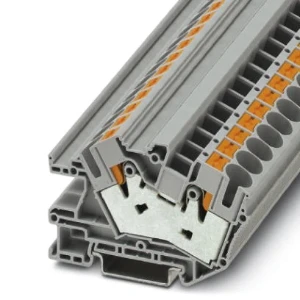

3214029 Phoenix Contact Multi level installation terminal block
Phoenix Contact Multi level installation terminal block PTI 16/S
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 16
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 16
Connectable conductor cross section solid-core
(mm²)
0.5 - 16
Connectable conductor cross section multi-wired
(mm²)
0.5 - 16
Rated current In
(A)
76
Width
(mm)
10.15
Rated voltage
(V)
500
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of potentials
1
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
10.2
Height at lowest possible mounting height
(mm)
51.1
Length
(mm)
77.7
Closing plate required
Yes
Basic colour
Grey
PE-function
No
With N-disconnect slide
No
N function possible
No
Height
(mm)
77.65
Depth
(mm)
49.6
Stock and logistics
Height
0.072 m
Width
0.172 m
Depth
0.271 m
Packaging
box
Weight
0.03 kg
HS code
85369010
Country of Origin
PL
