Phoenix Contact
3241059

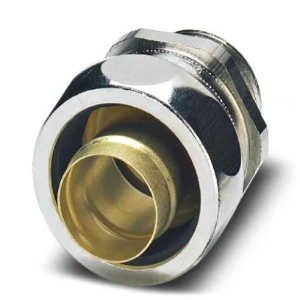

Screw connection for protective metallic hose
Manufacturer part number: 3241059
Serie: Wartel
Type: WP-G BRASS IP65 M12
EAN-code: 4046356712095
SKU Omnical: 2168347
Stock:
30 items.
Delivery time: 1-2 business days.
InStock
SSL Connection
WorldWide Shipping
3241059 Phoenix Contact Screw connection for protective metallic hose
Phoenix Contact Screw connection for protective metallic hose WP-G BRASS IP65 M12
Datasheet
Nominal diameter
(mm)
8.5
Revolving thread
No
Connection type screw connection to housing
Thread
Thread connection size
Other
One-piece
No
Material housing
Other
Surface protection
Nickel-plated
Lowest inner diameter hose
(mm)
10
Max. outer diameter hose
(mm)
14
Thread length
(mm)
10
Total length
(mm)
33
Total height
(mm)
33
Approved in combination with protective conduit according to DIN EN 61386-23
No
Approved in combination with protective conduit CSA
No
Approved in combination with protective conduit UL
No
Approved in combination with protective conduit FI
No
Thread type
Metric
Operating temperature
(°C)
-40 - 125
Number of inlets
1
With grounding connection
No
Stock and logistics
Height
0.015 m
Width
0.07 m
Depth
0.13 m
Packaging
box
Weight
0.022 kg
HS code
74122000
Country of Origin
DE
