Phoenix Contact
3273122

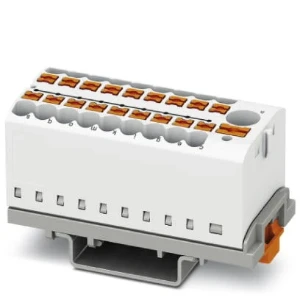

Feed-through terminal block
Manufacturer part number: 3273122
Serie: Verdelerblok
Type: PTFIX 6/18X2,5-NS35 WH
EAN-code: 4055626391199
SKU Omnical: 1801562
Stock:
84 items.
Delivery time: 1-2 business days.
InStock
XZR
€
997,52
per 100 items
€
854,87
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3273122 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block PTFIX 6/18X2,5-NS35 WH
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Rated current In
(A)
24
Width
(mm)
28.6
Rated voltage
(V)
690
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of levels
1
Number of clamp positions per level
19
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
28.6
Height at lowest possible mounting height
(mm)
30.4
Length
(mm)
58.1
Closing plate required
No
Colour
White
Internally connected stages
No
Height
(mm)
58.1
Depth
(mm)
30.4
Stock and logistics
Height
0.067 m
Width
0.094 m
Depth
0.12 m
Packaging
box
Weight
0.045 kg
HS code
85369010
Country of Origin
PL
