Prolumia
40002700
Ceiling-/wall luminaire
Manufacturer part number: 40002700
Serie:
Type: 40002700
EAN-code: 8720604742046
SKU Omnical: 1506784
Stock: 0.
Estimated lead time: 9 days *
PreOrder
ZDZ
€
127,50
per item
€
103,78
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

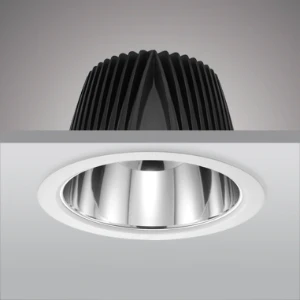

40002700 Prolumia Ceiling-/wall luminaire
Prolumia Ceiling-/wall luminaire LED downlight, 215mm, 26W, wit, 3000K, sparing 205mm
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Nominal current
(mA)
700 - 700
Colour temperature
(K)
3000 - 3000
Material housing
Aluminium
Colour housing
White
Suitable for light line configuration
No
Material cover
Without cover
Suitable for workplace according to EN 12464-1
Yes
Type of grid
None
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Light outlet
Direct
Height/depth
(mm)
125
Outer diameter
(mm)
215
Built-in height/depth
(mm)
125
Built-in diameter
(mm)
205
With movement sensor
No
With light sensor
No
Protection class
II
Degree of protection (IP)
IP20
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
26
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
2475
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Lacquered
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Reflector
Rated life time L70/B50 at 25 °C
(h)
50000
Rated ambient temperature according to IEC62722-2-1
(°C)
-10 - 50
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
95
Power factor
0.9
Type of wiring
Ending
Connection type
Screwed terminal
Unified Glare Ratio (UGR)
16
Suitable for wall mounting
Yes
Stock and logistics
Height
0.17 mm
Width
0.235 mm
Depth
0.225 mm
Packaging
box
Weight
1.06 kg
HS code
9405119090
Country of Origin
NL
