Prolumia
40008926
Ceiling-/wall luminaire
Manufacturer part number: 40008926
Serie:
Type: 40008926 LED I-PANEL595x595 84
EAN-code: 8719689122072
SKU Omnical: 1512212
Stock: 0.
Estimated lead time: 24 days *
PreOrder
ZDZ
€
76,50
per item
€
62,27
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

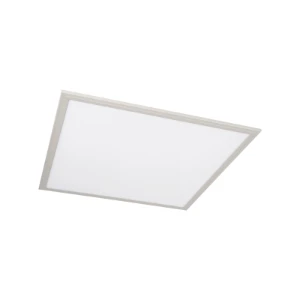

40008926 Prolumia Ceiling-/wall luminaire
Prolumia Ceiling-/wall luminaire LED I-panel, 4000K, RA>80, 595x595 constant current 1050mA, ex driver
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Width
(mm)
595
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
No
Suitable for emergency lighting
No
Nominal current
(mA)
1050 - 1050
Colour temperature
(K)
4000 - 4000
Material housing
Aluminium
Colour housing
White
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Length
(mm)
595
Height/depth
(mm)
10.4
Built-in length
(mm)
595
Built-in width
(mm)
595
Built-in height/depth
(mm)
10.4
With movement sensor
No
With light sensor
No
Protection class
II
Degree of protection (IP)
IP52
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
36
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
3960
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Lacquered
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
No
Light distributor
Diffuser lens/optic/panel
Rated life time L70/B50 at 25 °C
(h)
50000
Degree of protection (NEMA)
1
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 50
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
110
Power factor
0.9
Type of wiring
Ending
Total harmonic distortion
0.2
Unified Glare Ratio (UGR)
19
Suitable for wall mounting
No
Stock and logistics
Height
0.062 mm
Width
0.725 mm
Depth
0.653 mm
Packaging
box
Weight
3.35 kg
HS code
9405119090
Country of Origin
NL
