Prolumia
40009451
Ceiling-/wall luminaire
Manufacturer part number: 40009451
Serie:
Type: 40009451
EAN-code: 8720604743937
SKU Omnical: 1631077
Stock: 0.
Estimated lead time: 9 days *
PreOrder
ZDZ
€
106,50
per item
€
86,69
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
40009451 Prolumia Ceiling-/wall luminaire

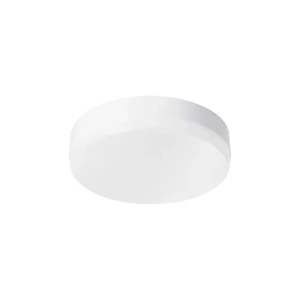

Prolumia Ceiling-/wall luminaire Prodisc II Mini + MW sensor, Ø260mm, 10W, 840Lm/900Lm
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
3000 - 4000
Material housing
Plastic
Colour housing
White
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Height/depth
(mm)
85
Outer diameter
(mm)
260
With movement sensor
Yes
With light sensor
Yes
Protection class
II
Degree of protection (IP)
IP44
Impact strength
IK10
Covering of the luminaire with thermally insulating material possible
Yes
Max. system power
(W)
10
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
900
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Other
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Rated life time L70/B50 at 25 °C
(h)
228000
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 50
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy
(lm/W)
90
Power factor
0.9
Type of wiring
Ending
Number of poles
2
Connection type
Push-in clamp
Dimming DALI-2
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
90
Max. number of luminaires per miniature circuit breaker B16
96
Max. number of luminaires per miniature circuit breaker C16
192
Colour temperature adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Suitable for wall mounting
Yes
D
Stock and logistics
Packaging
box
Weight
1 kg
HS code
9405114090
Country of Origin
NL
