Prolumia 40643061
Prolumia

40643061

High bay luminaire
Manufacturer part number: 40643061
Serie:
Type: 40643061

EAN-code: 8720604745986
SKU Omnical: 1412168

Stock: 0.

Estimated lead time: 5 days *
PreOrder

ZDZ
524,00 per item
426,54 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer

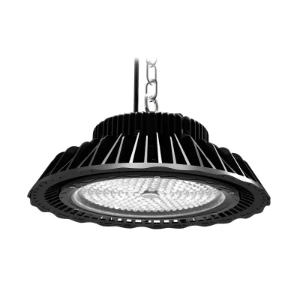

40643061 Prolumia High bay luminaire
Prolumia High bay luminaire LED Pro-Bay II Standaard, 200W, 4000k 120 graden lens
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Lamp type
LED not exchangeable
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device voltage-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage (V)
240 - 240
Material housing
Aluminium
Colour housing
Black
Mounting method
Surface mounting
With protective cover
Yes
Light sharing
Symmetric
Height/depth (mm)
201
Protection class
II
Degree of protection (IP)
IP65
Impact strength
IK10
With light source
Yes
Voltage type
AC
Reflector
None
Rated luminous flux according to IEC 62722-2-1 (lm)
28000
Colour of light
White
Colour temperature (K)
3800 - 4200
Colour rendering index CRI
70-79
Suitable for auxiliary lamp
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Refractor lens
Beam angle
Extreme wide beam >80°
Colour consistency (McAdam ellipse)
SDCM3
Rated life time L70/B50 at 25 °C (h)
100000
Degree of protection (NEMA)
3
Rated ambient temperature according to IEC62722-2-1 (°C)
-30 - 50
Max. system power (W)
200
Luminaire efficacy (lm/W)
140
Power factor
0.9
Outer diameter (mm)
430
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
1.5
Connection type
Other
Total harmonic distortion
20
Exchangeable control gear
No
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No

Stock and logistics

Packaging
box
Weight
6500 g
