Prolumia
40643403
High bay luminaire
Manufacturer part number: 40643403
Serie:
Type:
EAN-code: 8720615508938
SKU Omnical: 3374305
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZDZ
€
307,50
per item
€
250,30
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
40643403 Prolumia High bay luminaire

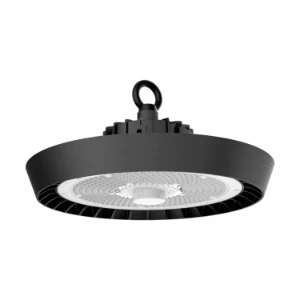

Prolumia High bay luminaire LED Pro-Bay III, 200W, IP65, 4000K, 0-10V dimbaar, 110°
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED exchangeable
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
Black
Mounting method
Pendant
With protective cover
Yes
Light sharing
Symmetric
Height/depth
(mm)
174
Protection class
I
Degree of protection (IP)
IP65
Impact strength
IK08
Ball-proof
No
Luminaire with limited surface temperature, sign "D“
No
With light source
Yes
Voltage type
AC/DC
Nominal current
(mA)
1100 - 1100
Reflector
None
Rated luminous flux according to IEC 62722-2-1
(lm)
32000
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
80-89
Suitable for auxiliary lamp
No
Dimming 0-10 V
Yes
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming potentiometer (integrated)
Yes
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
Yes
Dimming with push-button
No
No dim function
No
Light distributor
None
Beam angle
Open beam/diffuse
Colour consistency (McAdam ellipse)
SDCM4
Rated life time L70/B50 at 25 °C
(h)
100000
Rated ambient temperature according to IEC62722-2-1
(°C)
-30 - 45
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Max. system power
(W)
210
Luminaire efficacy
(lm/W)
160
Power factor
0.95
Outer diameter
(mm)
331
Type of wiring
Ending
Number of poles
1
Connection type
Crimping
Total harmonic distortion
0.15
Exchangeable control gear
Yes
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
Positions
Stock and logistics
Height
0.19 mm
Width
0.385 mm
Depth
0.385 mm
Packaging
box
Weight
4 kg
HS code
9405499090
Country of Origin
NL
