Rittal
9677010
Fuse switch disconnector
Manufacturer part number: 9677010
Serie: SV
Type: 9677010
EAN-code: 4028177705463
SKU Omnical: 2155300
Stock: 0.
Estimated lead time: 16 days *
PreOrder
C81
€
153,27
per item
€
144,53
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

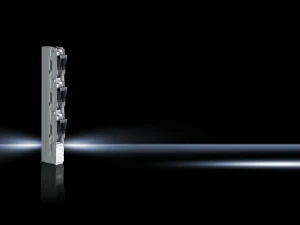

9677010 Rittal Fuse switch disconnector
Rittal Fuse switch disconnector SV NH-zekeringlast.sch DIN00 1pol.schak.
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Version as main switch
No
Version as safety switch
No
Rated permanent current Iu
(A)
160
Max. rated operation voltage Ue AC
(V)
690
Suitable for fuses
NH00
Conditioned rated short-circuit current Iq
(kA)
100
Number of poles
3
With error protection
No
Type of electrical connection of main circuit
Screw connection
Suitable for floor mounting
No
Suitable for front mounting
Yes
Suitable for busbar mounting
Yes
Type of control element
Cover grip
Version as emergency stop installation
No
Degree of protection (IP), front side
IP30
Rated operation power at AC-23, 400 V
(kW)
80
Rated short-time withstand current lcw
(kA)
100
Position control element
Front side
Motor drive optional
No
Motor drive integrated
No
Equipped with connectors
No
Stock and logistics
Height
0.055 m
Width
0.2 m
Depth
0.695 m
Packaging
box
Weight
2.64 kg
HS code
85365080
Country of Origin
DE
