Schneider Electric
16926

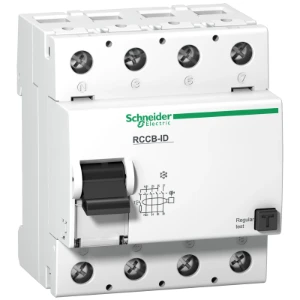

Residual current circuit breaker (RCCB)
Manufacturer part number: 16926
Serie: ID-RCCB
EAN-code: 3303430169260
SKU Omnical: 1009816
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S70
€
543,50
per item
€
369,04
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
16926 Schneider Electric Residual current circuit breaker (RCCB)
Schneider Electric Residual current circuit breaker (RCCB) ID RCCB - Aardlekschakelaar 4P - In=125A - 300mA - Type A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated fault current
(A)
0.3
Rated current
(A)
125
Leakage current type
A
Selective protection
No
Rated voltage
(V)
400
Mounting method
DIN rail
Surge current capacity
(kA)
0.25
Frequency
50/60 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Construction size (according to DIN 43880)
4
Width in number of modular spacings
4
Built-in depth
(mm)
44
Short-time delayed tripping
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 40
Pollution degree
3
Connectable conductor cross section multi-wired
(mm²)
1.5 - 35
Connectable conductor cross section solid-core
(mm²)
1.5 - 50
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
7.6 cm
Width
9.2 cm
Depth
11.4 cm
Packaging
box
Weight
0.426 kg
HS code
8536303099
Country of Origin
DE
