Schneider Electric
18265
Residual current circuit breaker (RCCB)
Manufacturer part number: 18265
Serie: RED
EAN-code: 3303430182658
SKU Omnical: 1201679
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S70
$
1,195.63
per item
$
811.83
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

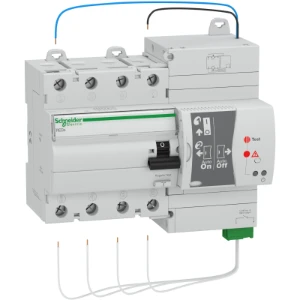

18265 Schneider Electric Residual current circuit breaker (RCCB)
Schneider Electric Residual current circuit breaker (RCCB) REDs Aardlekschakelaar 4P - In=25A - 300 mA - Type A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated fault current
(A)
0.3
Rated current
(A)
25
Leakage current type
A
Selective protection
No
Rated voltage
(V)
400
Mounting method
DIN rail
Surge current capacity
(kA)
0.25
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Construction size (according to DIN 43880)
4
Width in number of modular spacings
7
Built-in depth
(mm)
44
Short-time delayed tripping
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
Yes
Ambient temperature during operating
(°C)
-5 - 40
Pollution degree
2
Connectable conductor cross section multi-wired
(mm²)
1.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
1.5 - 2.5
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
11.6 cm
Width
13.8 cm
Depth
16.8 cm
Packaging
box
Weight
0.82 kg
HS code
8536201090
Country of Origin
IT
