Schneider Electric
19016
Residual current circuit breaker (RCCB) module
Manufacturer part number: 19016
Serie: Acti9 NG125
EAN-code: 3303430190165
SKU Omnical: 2318410
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S70
€
386,50
per item
€
262,43
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

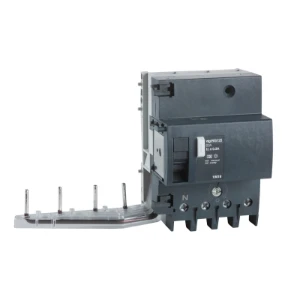

19016 Schneider Electric Residual current circuit breaker (RCCB) module
Schneider Electric Residual current circuit breaker (RCCB) module Acti9 Vigi NG125 - Aardlekelement 4P - In=63A - 300 mA - Type A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
230 - 415
Nominal current
(A)
63
Rated fault current adjustable
No
Rated fault current
(A)
0.3 - 0.3
Max. delay time
(ms)
0
Delay adjustable
No
Number of poles
4
Leakage current type
A
Surge current capacity
(kA)
3
Frequency
50/60 Hz
Rated insulation voltage Ui
(V)
690
Rated impulse withstand voltage Uimp
(kV)
8
Connectable conductor cross section solid-core
(mm²)
1.5 - 50
Connectable conductor cross section multi-wired
(mm²)
1 - 35
Anti-nuisance tripping version
No
With interlocking device
Yes
Degree of protection (IP)
IP20
Pollution degree
3
Ambient temperature during operating
(°C)
-25 - 60
Stock and logistics
Height
9.5 cm
Width
13.5 cm
Depth
26 cm
Packaging
box
Weight
0.538 kg
HS code
8536303000
Country of Origin
FR
