Schneider Electric
7213250000

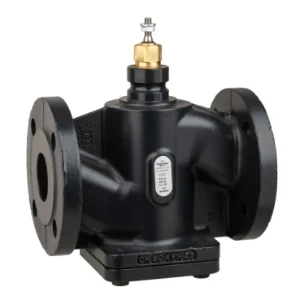

Two way control valve
Manufacturer part number: 7213250000
Serie: HVAC
EAN-code: 3606489658434
SKU Omnical: 3076837
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHW
$
1,217.58
per item
$
991.11
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7213250000 Schneider Electric Two way control valve
Schneider Electric Two way control valve V2325038 2w afsluiter dn50 kvs 38
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Housing material
Cast iron
Material quality
Other
Nominal diameter
DN 50
Outer pipe diameter all connections
(mm)
50
Connections
Flange
Article compression class
PN 25
Flange compression class
PN 25
Max. medium temperature (continuous)
(°C)
150
Min. medium temperature (continuous)
(°C)
-20
Surface protection
Untreated
Kvs value
38
Leakage loss of KVS value
(%)
0.02
Characteristic curve
Equal percentage
Stroke length
(mm)
20
Automatic flow control
No
Nominal diameter connection 1
2 inch (50)
Outer pipe diameter connection 1
(mm)
50
Connection 1
Flange
Material housing
Other
Suitable for tap water
Yes
Suitable for process water
Yes
Suitable for cooling
Yes
Stock and logistics
Height
16.7 cm
Width
29.4 cm
Depth
23 cm
Packaging
box
Weight
13.55 kg
HS code
8481807100
