Schneider Electric
7219266000

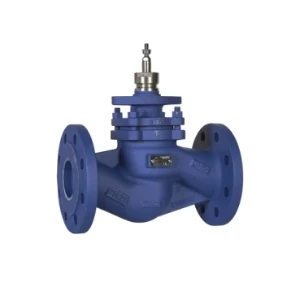

Two way control valve
Manufacturer part number: 7219266000
Serie: HVAC
EAN-code: 3606481819802
SKU Omnical: 3076853
Stock: 0.
Estimated lead time: 13 days *
PreOrder
XHW
$
4,407.16
per item
$
3,587.43
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7219266000 Schneider Electric Two way control valve
Schneider Electric Two way control valve V2921250 2w afsluiter dn125 kvs 250
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Housing material
Cast iron
Material quality
Other
Nominal diameter
DN 125
Outer pipe diameter all connections
(mm)
125
Connections
Flange
Article compression class
PN 25
Flange compression class
PN 25
Max. medium temperature (continuous)
(°C)
150
Min. medium temperature (continuous)
(°C)
-10
Surface protection
Untreated
Kvs value
250
Leakage loss of KVS value
(%)
0.05
Characteristic curve
Equal percentage
Stroke length
(mm)
50
Automatic flow control
No
Nominal diameter connection 1
1 inch (25)
Outer pipe diameter connection 1
(mm)
125
Connection 1
Flange
Material housing
Bronze
Suitable for tap water
Yes
Suitable for process water
Yes
Suitable for cooling
Yes
Stock and logistics
Height
27 cm
Width
43.5 cm
Depth
40 cm
Packaging
box
Weight
61.85 kg
HS code
8481807390
