Schneider Electric
A9D17210
Earth leakage circuit breaker
Manufacturer part number: A9D17210
Serie: Acti9 iC60 RCBO
EAN-code: 3606481157232
SKU Omnical: 2467732
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S70
$
234.62
per item
$
159.31
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

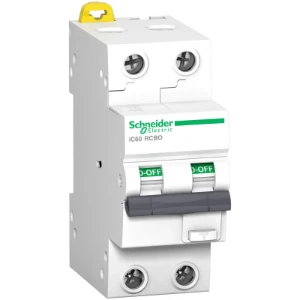

A9D17210 Schneider Electric Earth leakage circuit breaker
Schneider Electric Earth leakage circuit breaker Acti9 IC60 Aardlekautomaat 2P 10A 30mA C-karakteristiek 10kA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
2
Number of protected poles
2
Rated current
(A)
10
Rated fault current
(A)
0.03
Release characteristic
C
Concurrently switching neutral conductor
Yes
Leakage current type
A
Rated short-circuit breaking capacity according to EN 60898
(kA)
10
Rated short-circuit breaking capacity according to IEC 60947-2
(kA)
15
Rated voltage
(V)
230
Current limiting class
3
Frequency
50 Hz
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Built-in depth
(mm)
45
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
No
Surge current capacity
(kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
10
Disconnection characteristic
Undelayed
With interlocking device
No
Ambient temperature during operating
(°C)
-25 - 40
Connectable conductor cross section solid-core
(mm²)
1 - 35
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Flush-mounted installation
No
Stock and logistics
Height
8 cm
Width
4 cm
Depth
9.8 cm
Packaging
box
Weight
0.226 kg
HS code
8536201090
