Schneider Electric
A9D37625
Earth leakage circuit breaker
Manufacturer part number: A9D37625
Serie: Acti9 iDPN Vigi
EAN-code: 3606480484384
SKU Omnical: 2086257
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S70
$
267.88
per item
$
181.89
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

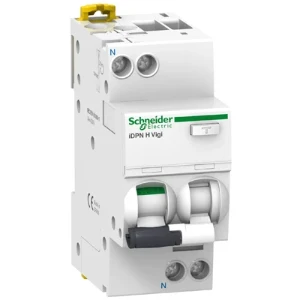

A9D37625 Schneider Electric Earth leakage circuit breaker
Schneider Electric Earth leakage circuit breaker iDPN H Vigi - Aardlekautomaat 1P+N - 25A/30mA - C-Karakteristiek - Typ
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
2
Number of protected poles
1
Rated current
(A)
25
Rated fault current
(A)
0.03
Release characteristic
C
Concurrently switching neutral conductor
Yes
Leakage current type
A
Rated short-circuit breaking capacity according to EN 60898
(kA)
10
Rated voltage
(V)
230
Current limiting class
3
Frequency
50 Hz
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
2
Built-in depth
(mm)
44
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
No
Surge current capacity
(kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
400
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
10
Disconnection characteristic
Undelayed
With interlocking device
No
Ambient temperature during operating
(°C)
-25 - 60
Connectable conductor cross section solid-core
(mm²)
1 - 16
Connectable conductor cross section multi-wired
(mm²)
1 - 10
Flush-mounted installation
No
Stock and logistics
Height
4 cm
Width
8 cm
Depth
10 cm
Packaging
box
Weight
0.223 kg
HS code
8536201090
Country of Origin
ES
