Schneider Electric
A9DC2616
Earth leakage circuit breaker
Manufacturer part number: A9DC2616
Serie: Acti9 iCV40
EAN-code: 3606489443771
SKU Omnical: 2676724
Stock:
33 items.
Delivery time: 1-2 business days.
InStock
U06
€
163,20
per item
€
78,17
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

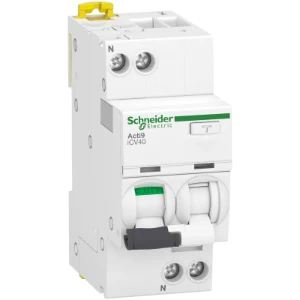

A9DC2616 Schneider Electric Earth leakage circuit breaker
Schneider Electric Earth leakage circuit breaker iCV40 1P+N C16 4500A A 30mA
Datasheet
Number of poles (total)
2
Number of protected poles
1
Rated voltage
(V)
230
Rated current
(A)
16
Rated fault current
(A)
0.03
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 60898
(kA)
4.5
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
2
Built-in depth
(mm)
44
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
No
Surge current capacity
(kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
400
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
4.5
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
4.5
Disconnection characteristic
Undelayed
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 60
Connectable conductor cross section solid-core
(mm²)
1 - 16
Connectable conductor cross section multi-wired
(mm²)
1 - 10
Flush-mounted installation
No
Stock and logistics
Height
4 cm
Width
8.3 cm
Depth
10 cm
Packaging
box
Weight
0.23 kg
HS code
8536201090
