Schneider Electric

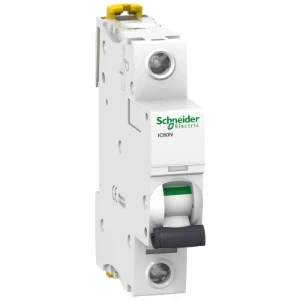

A9F78125
Miniature circuit breaker (MCB)
Manufacturer part number: A9F78125
Serie: Acti9 iC60
EAN-code: 3606480092718
SKU Omnical: 2086475
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S70
€
25,20
per item
€
17,11
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
A9F78125 Schneider Electric Miniature circuit breaker (MCB)
Schneider Electric Miniature circuit breaker (MCB) iC60N - Installatieautomaat 1P - In=25A - B-Karakteristiek
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
25
Number of poles (total)
1
Concurrently switching neutral conductor
No
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
10
Rated voltage
(V)
230
Additional equipment possible
Yes
Voltage type
AC/DC
Current limiting class
3
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
1
Built-in depth
(mm)
44.5
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-35 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 16
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
7.5 cm
Width
1.7 cm
Depth
9.5 cm
Packaging
box
Weight
0.115 kg
HS code
8536201090
Country of Origin
FR
