Schneider Electric
A9L16282
Combined arrester for power supply systems
Manufacturer part number: A9L16282
Serie: Acti9 iPRF1 & PRD1
EAN-code: 3606481490209
SKU Omnical: 4095406
Stock: 0.
Estimated lead time: 10 days *
PreOrder
ZZL
$
662.94
per item
$
450.14
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

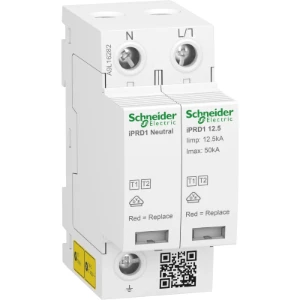

A9L16282 Schneider Electric Combined arrester for power supply systems
Schneider Electric Combined arrester for power supply systems Acti9 - Modulaire spanningsonderbreker - iPRD1 12.5r - 1P+N - 350V - S
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
2
Max. continuous voltage AC
(V)
350
Nominal voltage AC
(V)
230
Voltage protection level
(kV)
1.5
Voltage protection level L-N
(kV)
1.5
Voltage protection level N-PE
(kV)
1.5
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Remote signalling
Yes
Signalling at the device
Optic
Test class
Type 1 + 2
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Integrated backup fuse
No
Degree of protection (IP)
IP20
Voltage switching spark gap technology
No
Stock and logistics
Height
4.5 cm
Width
8 cm
Depth
9 cm
Packaging
box
Weight
326 g
HS code
8536303000
