Schneider Electric
A9L16482
Combined arrester for power supply systems
Manufacturer part number: A9L16482
Serie: Acti9 iPRF1 & PRD1
EAN-code: 3606481490223
SKU Omnical: 4127049
Stock: 0.
Estimated lead time: 6 days *
PreOrder
ZZL
€
770,20
per item
€
522,97
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

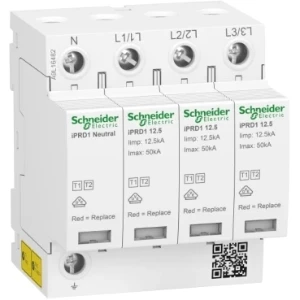

A9L16482 Schneider Electric Combined arrester for power supply systems
Schneider Electric Combined arrester for power supply systems Acti9 - Modulaire spanningsonderbreker - iPRD1 12.5 - 3P+N - 350V - Si
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Max. continuous voltage AC
(V)
350
Nominal voltage AC
(V)
400
Voltage protection level
(kV)
1.5
Voltage protection level L-N
(kV)
1.5
Voltage protection level N-PE
(kV)
1.5
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
8 modular spacing
Remote signalling
Yes
Signalling at the device
Optic
Test class
Type 1 + 2
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Integrated backup fuse
No
Degree of protection (IP)
IP20
Voltage switching spark gap technology
No
Stock and logistics
Height
8 cm
Width
8 cm
Depth
9.3 cm
Packaging
box
Weight
650 g
HS code
8536303000
