Schneider Electric

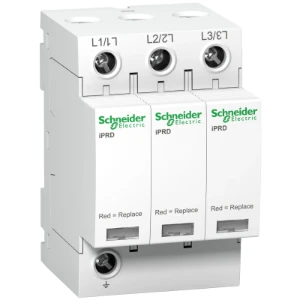

A9L40300
Surge protection device for power supply systems
Manufacturer part number: A9L40300
Serie: Acti 9 iPF K
EAN-code: 3606480506390
SKU Omnical: 2320534
Stock: 0.
Estimated lead time: 10 days *
PreOrder
ZZL
$
301.76
per item
$
204.90
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
A9L40300 Schneider Electric Surge protection device for power supply systems
Schneider Electric Surge protection device for power supply systems Acti9 iPRD40 - Overspanningsbeveiliging - 3P - In=15kA/Uc=350V - Type
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-C
Type of poles
3
Nominal discharge surge current (8/20)
(kA)
15
Nominal voltage AC
(V)
350
Max. continuous voltage AC
(V)
350
Voltage protection level
(kV)
1.5
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
3 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
35
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
No
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
Yes
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
3
Short-circuit breaking capacity (Isccr)
(kA)
50
Max. discharge surge current (8/20)
(kA)
40
Max. overcurrent protection device, parallel connection (fuse)
(A)
63
Max. overcurrent protection device, series connection (fuse)
(A)
80
Integrated short-circuit protection
No
Leakage-current free
No
Stock and logistics
Height
6.4 cm
Width
7.8 cm
Depth
9.3 cm
Packaging
box
Weight
0.357 kg
HS code
8536303000
