Schneider Electric
A9N18357
Miniature circuit breaker (MCB)
Manufacturer part number: A9N18357
Serie: Acti9 C120
EAN-code: 3606480379314
SKU Omnical: 2087060
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S70
$
129.60
per item
$
88.00
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

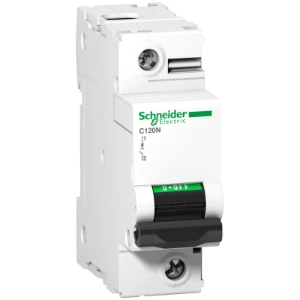

A9N18357 Schneider Electric Miniature circuit breaker (MCB)
Schneider Electric Miniature circuit breaker (MCB) C120N - Installatieautomaat 1P - In=80A - C-Karakteristiek
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
80
Number of poles (total)
1
Concurrently switching neutral conductor
No
Release characteristic
C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
3
Rated voltage
(V)
415
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
1.5
Built-in depth
(mm)
44
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-25 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 35
Connectable conductor cross section solid-core
(mm²)
1.5 - 50
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
2.7 cm
Width
7.5 cm
Depth
8.7 cm
Packaging
box
Weight
0.193 kg
HS code
8536209090
Country of Origin
FR
