Schneider Electric
A9N18598

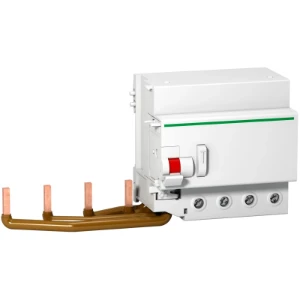

Residual current circuit breaker (RCCB) module
Manufacturer part number: A9N18598
Serie: Acti9 C120
EAN-code: 3606480376726
SKU Omnical: 2087162
Stock:
17 items.
Delivery time: 1-2 business days.
InStock
UVK
€
603,85
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
A9N18598 Schneider Electric Residual current circuit breaker (RCCB) module
Schneider Electric Residual current circuit breaker (RCCB) module Vigi C120 - Aardlekelement 4P - 300mA - Type A-SI
Datasheet
Nominal voltage
(V)
230 - 415
Nominal current
(A)
125
Rated fault current adjustable
No
Rated fault current
(A)
0.3 - 0.3
Max. delay time
(ms)
0
Delay adjustable
No
Number of poles
4
Leakage current type
A
Surge current capacity
(kA)
3
Frequency
50 Hz
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Connectable conductor cross section solid-core
(mm²)
1 - 50
Connectable conductor cross section multi-wired
(mm²)
1 - 35
Anti-nuisance tripping version
Yes
With interlocking device
No
Degree of protection (IP)
IP20
Pollution degree
3
Ambient temperature during operating
(°C)
-25 - 60
Stock and logistics
Height
9.3 cm
Width
13.7 cm
Depth
25.6 cm
Packaging
box
Weight
0.675 kg
HS code
8536303000
Country of Origin
FR
