Schneider Electric
A9P52725
Miniature circuit breaker (MCB)
Manufacturer part number: A9P52725
Serie: Acti9 iC40
EAN-code: 3606481325938
SKU Omnical: 3076116
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S70
$
108.45
per item
$
73.64
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

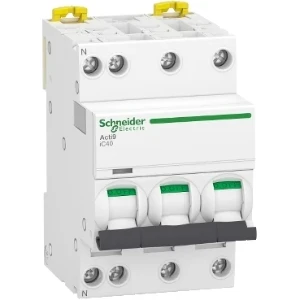

A9P52725 Schneider Electric Miniature circuit breaker (MCB)
Schneider Electric Miniature circuit breaker (MCB) Acti9 iC40 - Installatieautomaat - 3P+N - 25A - C-Karakteristiek - 450
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
25
Number of poles (total)
4
Concurrently switching neutral conductor
Yes
Release characteristic
C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
4.5
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
6
Rated voltage
(V)
400
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
3
Built-in depth
(mm)
44
Degree of protection (IP)
IP20
Number of protected poles
3
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 10
Connectable conductor cross section solid-core
(mm²)
1 - 16
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
0.074 cm
Width
0.054 cm
Depth
0.094 cm
Packaging
box
Weight
0.349 kg
HS code
8536201090
Country of Origin
HU
