Schneider Electric
A9R26492
Residual current circuit breaker (RCCB)
Manufacturer part number: A9R26492
Serie:
EAN-code: 3606486869024
SKU Omnical: 3399413
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S70
€
577,40
per item
€
392,05
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

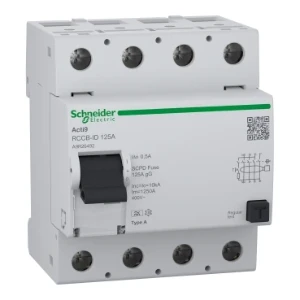

A9R26492 Schneider Electric Residual current circuit breaker (RCCB)
Schneider Electric Residual current circuit breaker (RCCB) Acti9 RCCB-ID, Aardlekschakelaar, RCCB, 4P, 125A, 500mA, A type
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated fault current
(A)
0.5
Rated current
(A)
125
Leakage current type
A
Selective protection
No
Rated voltage
(V)
400
Mounting method
DIN rail
Surge current capacity
(kA)
0.25
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Built-in depth
(mm)
44
Short-time delayed tripping
No
Rated insulation voltage Ui
(V)
400
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 40
Pollution degree
3
Connectable conductor cross section multi-wired
(mm²)
1.5 - 35
Connectable conductor cross section solid-core
(mm²)
1.5 - 50
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
8 cm
Width
7.5 cm
Depth
9 cm
Packaging
box
Weight
413 g
HS code
8536209090
