Schneider Electric
A9R45492
Residual current circuit breaker (RCCB)
Manufacturer part number: A9R45492
Serie:
EAN-code: 3606486869086
SKU Omnical: 3396126
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S70
€
3.182,00
per item
€
2.160,58
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

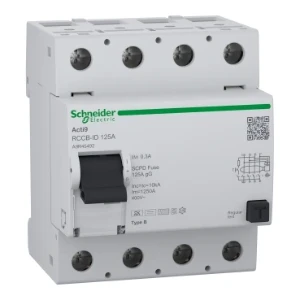

A9R45492 Schneider Electric Residual current circuit breaker (RCCB)
Schneider Electric Residual current circuit breaker (RCCB) Acti9 RCCB-ID, Aardlekschakelaar, RCCB, 4P, 125A, 300SmA, B type
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated fault current
(A)
0.3
Rated current
(A)
125
Leakage current type
B
Selective protection
Yes
Rated voltage
(V)
400
Mounting method
DIN rail
Surge current capacity
(kA)
3
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Built-in depth
(mm)
44
Short-time delayed tripping
No
Rated insulation voltage Ui
(V)
400
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 40
Pollution degree
3
Connectable conductor cross section multi-wired
(mm²)
1.5 - 35
Connectable conductor cross section solid-core
(mm²)
1.5 - 50
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
8 cm
Width
7.5 cm
Depth
9 cm
Packaging
box
Weight
5.976 kg
HS code
8536209090
Country of Origin
DE
