Schneider Electric
A9XPK707
Rail terminal bar
Manufacturer part number: A9XPK707
Serie: Distribloc
EAN-code: 3606489667573
SKU Omnical: 3069588
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S75
$
205.98
per item
$
148.51
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

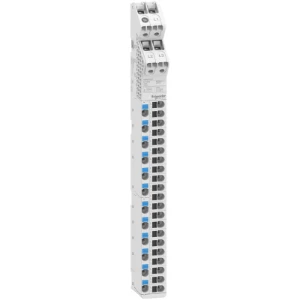

A9XPK707 Schneider Electric Rail terminal bar
Schneider Electric Rail terminal bar Acti9 VDIS, Verticaal distributieblok, 3P+N, 125A, 250/440V, 33 distri
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Connection type
Screwless
Number of connections 16 mm²
33
Width
(mm)
40.5
Nominal current
(A)
125
Number of connections > 25 mm²
4
Number of connections total
33
Mounting method
DIN rail
Height
(mm)
408
Depth
(mm)
71.5
Contact safe
Yes
Number of inputs
4
Number of outputs
33
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
Yes
Suitable for extra fine-strand conductors
Yes
Suitable for extra fine-strand conductors without cable end sleeve
No
Conductor cross section, input
(mm²)
10 - 35
Conductor cross section, output
(mm²)
1.5 - 16
Stock and logistics
Height
8 cm
Width
4.5 cm
Depth
46 cm
Packaging
box
Weight
1.234 kg
HS code
8536909500
