Schneider Electric

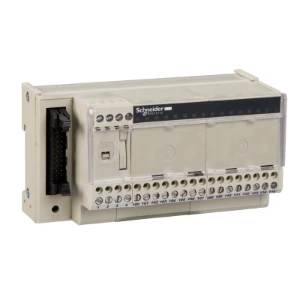

ABE7H16R11
Passive sensor-actuator interface (with cable)
Manufacturer part number: ABE7H16R11
Serie: Modicon ABE7
EAN-code: 3389110544947
SKU Omnical: 1029726
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S03
$
178.37
per item
$
130.03
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
ABE7H16R11 Schneider Electric Passive sensor-actuator interface (with cable)
Schneider Electric Passive sensor-actuator interface (with cable) Modicon ABE7 - Passieve aansluitbasis - 16 ingangen of uitgangen - LED
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of branch for trunk line
Hood distributor / pluggable trunk line connection
Connection type hood version
Screw connection
Connectable conductor cross section fine-strand without cabl
(mm²)
0.14 - 2.5
Connectable conductor cross section fine-strand with cable e
(mm²)
0.09 - 1.5
Width
(mm)
125
Connectable conductor cross section solid-core (hood version
(mm²)
0.14 - 2.5
Connectable conductor cross section stranded (hood version)
(mm²)
0.14 - 2.5
Cable outer diameter for cable gland
(mm)
0.09 - 2.5
Cable length configurable
Yes
Number of sensor-/actuator-slots
1
Number of channels per connector slot
16
Type of branches for sensor-/actuator cables
Other
Number of poles sensor/actuator slots
16
Rated voltage
(V)
24
Pollution degree
2
Operating voltage
(V)
24 - 24
Max. current carrying capacity per I/O signal
(A)
0.5
Max. current carrying capacity per socket
(A)
1.8
Max. total current
(A)
1.8
Diameter contact female
(mm)
2.5
Material contact body
Other copper alloys
Material of contact surface
Other
Material insulation body
Other
Thread sleeves sensor/actuator slots
Other
With LED indication
Yes
With potential separation
No
Connection for NPN-sensors
Yes
Fix cable version suitable for cable guide chain
No
Material housing
Plastic, metallized
Colour housing
Grey
Operating temperature
(°C)
-5 - 60
Degree of protection (IP)
IP2X
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
70
Length
(mm)
67
Depth
(mm)
67
Connectable conductor cross section
(mm²)
0.09 - 2.5
Stock and logistics
Height
7.1 cm
Width
8.2 cm
Depth
13.6 cm
Packaging
box
Weight
0.279 kg
HS code
8536909500
Country of Origin
FR
