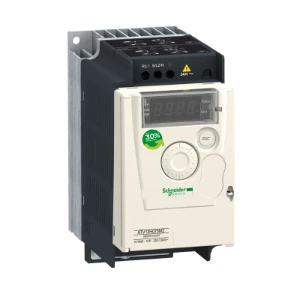

Schneider Electric ATV12H075M2
Schneider Electric

ATV12H075M2

Frequency converter =< 1 kV
Manufacturer part number: ATV12H075M2
Serie: Altivar 12

EAN-code: 3606480071072
SKU Omnical: 1116805

Stock: 19 items.

Delivery time: 1-2 business days.
InStock

S86
323,95 per item
268,55 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
ATV12H075M2 Schneider Electric Frequency converter =< 1 kV
Schneider Electric Frequency converter =< 1 kV ATV12 0.75KW 240V EENFASE KOELLICHAAM

Datasheet

Mains voltage (V)
200 - 240
Max. output at linear load at rated output voltage (kW)
0.75
Number of phases input
1
Number of phases output
3
Mains frequency
50/60 Hz
Max. output frequency (Hz)
400
Max. output at quadratic load at rated output voltage (kW)
0.75
Width (mm)
72
With control element
Yes
Application in industrial area permitted
Yes
Application in domestic- and commercial area permitted
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
8
With optical interface
No
With PC connection
Yes
Integrated breaking resistance
No
4-quadrant operation possible
No
Type of converter
U converter
Degree of protection (IP)
IP20
Height (mm)
143
Depth (mm)
131.2
Relative symmetric net frequency tolerance (%)
5
Relative symmetric net voltage tolerance (%)
10
Max. output voltage (V)
230
Nominal output current I2N (A)
4.2
Number of analogue outputs
1
Number of analogue inputs
1
Number of digital outputs
1
Number of digital inputs
4
Supporting protocol for BACnet
No

Stock and logistics

Height
11.7 cm
Width
19 cm
Depth
19.5 cm

Packaging
box
Weight
1.11 kg
HS code
8504409590
Country of Origin
ID
