Schneider Electric
ATV320U30N4W
Frequency converter =< 1 kV
Manufacturer part number: ATV320U30N4W
Serie: Altivar Machine ATV320
EAN-code: 3606489548520
SKU Omnical: 3072781
Stock:
2 items.
Delivery time: 1-2 business days.
InStock
ZSM
€
1.189,27
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

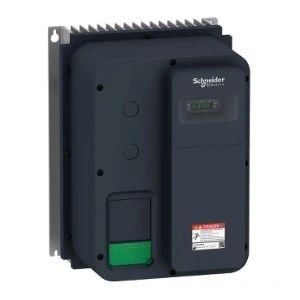

ATV320U30N4W Schneider Electric Frequency converter =< 1 kV
Schneider Electric Frequency converter =< 1 kV ATV320 3KW 380-500V 3F IP66
Datasheet
Mains voltage
(V)
380 - 500
Max. output at linear load at rated output voltage
(kW)
3
Number of phases input
3
Number of phases output
3
Mains frequency
50/60 Hz
Max. output frequency
(Hz)
599
Max. output at quadratic load at rated output voltage
(kW)
3
Width
(mm)
250
With control element
Yes
Application in industrial area permitted
Yes
Application in domestic- and commercial area permitted
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
Yes
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
1
With optical interface
No
With PC connection
Yes
Integrated breaking resistance
Yes
4-quadrant operation possible
Yes
Type of converter
U converter
Degree of protection (IP)
IP66
Height
(mm)
340
Depth
(mm)
235
Relative symmetric net frequency tolerance
(%)
5
Relative symmetric net voltage tolerance
(%)
10
Max. output voltage
(V)
500
Nominal output current I2N
(A)
7.1
Number of analogue outputs
1
Number of analogue inputs
3
Number of digital outputs
3
Number of digital inputs
7
Supporting protocol for BACnet
No
Degree of protection (NEMA)
4X
Stock and logistics
Height
29.3 cm
Width
30.5 cm
Depth
45 cm
Packaging
box
Weight
9.7 kg
HS code
8504409590
