Schneider Electric
ATV650C25N4F
Frequency converter =< 1 kV
Manufacturer part number: ATV650C25N4F
Serie: Altivar Process ATV600
EAN-code: 3606485410852
SKU Omnical: 2468015
Stock: 0.
Estimated lead time: 21 days *
PreOrder
T21
€
36.871,00
per item
€
30.566,06
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

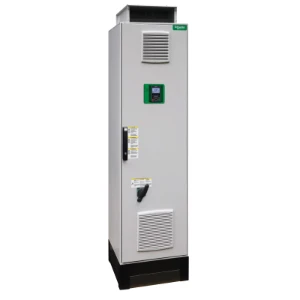

ATV650C25N4F Schneider Electric Frequency converter =< 1 kV
Schneider Electric Frequency converter =< 1 kV Altivar Process ATV650 - Frequentieregelaar - 250kW - 380-440V - IP54
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mains voltage
(V)
380 - 440
Max. output at linear load at rated output voltage
(kW)
250
Number of phases input
3
Number of phases output
3
Mains frequency
50/60 Hz
Max. output frequency
(Hz)
500
Max. output at quadratic load at rated output voltage
(kW)
250
Width
(mm)
600
With control element
Yes
Application in industrial area permitted
Yes
Application in domestic- and commercial area permitted
Yes
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
Yes
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Number of HW-interfaces industrial Ethernet
1
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
With PC connection
No
Integrated breaking resistance
No
4-quadrant operation possible
Yes
Type of converter
U converter
Degree of protection (IP)
IP54
Height
(mm)
2350
Depth
(mm)
669
Relative symmetric net frequency tolerance
(%)
5
Relative symmetric net voltage tolerance
(%)
10
Max. output voltage
(V)
440
Nominal output current I2N
(A)
477
Number of analogue outputs
2
Number of analogue inputs
3
Number of digital outputs
0
Number of digital inputs
6
Supporting protocol for BACnet
No
Stock and logistics
Height
214.5 cm
Width
120 cm
Depth
111 cm
Packaging
box
Weight
562 kg
HS code
8504409590
