Schneider Electric
BMEH586040
PLC CPU-module
Manufacturer part number: BMEH586040
Serie: Modicon M580 - ePac-controller
EAN-code: 3606485440019
SKU Omnical: 2468197
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S94
$
14,812.41
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

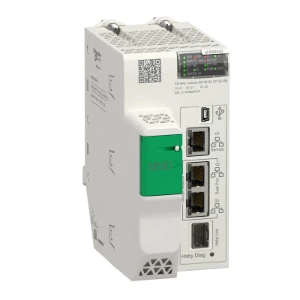

BMEH586040 Schneider Electric PLC CPU-module
Schneider Electric PLC CPU-module Modicon M580 ePAC - Processor level 6 - redundant - 64Mb RAM - DI/O +
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of HW-interfaces industrial Ethernet
4
Number of digital inputs
0
Number of digital outputs
0
Number of analogue inputs
0
Number of analogue outputs
0
Supply voltage DC
(V)
24 - 24
Voltage type of supply voltage
DC
Number of relay outputs
0
Width
(mm)
130.3
Max. number of time switches
0
Max. number of addressable analogue I/O-ports
0
Max. number of addressable digital I/O-ports
0
Model
Modular
Processing time (1K, binary operation)
(ms)
0.025
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
Yes
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
Yes
System accessory
No
Redundancy
Yes
With display
No
Type of memory
NVRAM
Memory size
(kByte)
65536
Additional program memory possible
Yes
Rail mounting possible
No
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
Yes
Suitable for safety functions
Yes
Category according to EN 954-1
1
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
ATEX dust-ex-protection, Cat. 3D
Height
(mm)
134.6
Depth
(mm)
64.6
SIL according to IEC 61508
None
Supporting protocol for DNP3
No
Supporting protocol for IEC 60870
No
Supporting protocol for IEC 61850 Ethernet
No
Long-Term Evolution (LTE)
No
Stock and logistics
Height
8.7 cm
Width
17.7 cm
Depth
25 cm
Packaging
box
Weight
0.9 kg
HS code
8537109199
