Schneider Electric
BMXP341000H
PLC CPU-module
Manufacturer part number: BMXP341000H
Serie:
EAN-code: 3595864024479
SKU Omnical: 4327963
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S94
€
769,53
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

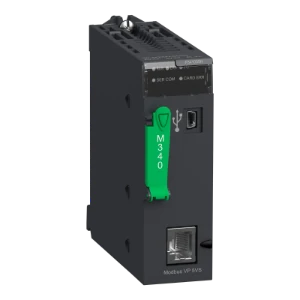

BMXP341000H Schneider Electric PLC CPU-module
Schneider Electric PLC CPU-module Modicon M340-10 processor - 2Mb RAM - USB/Modbus - -25..70°C - vernisb
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of HW-interfaces industrial Ethernet
2
Number of digital inputs
512
Number of digital outputs
512
Number of analogue inputs
128
Number of analogue outputs
128
Supply voltage DC
(V)
24 - 24
Voltage type of supply voltage
DC
Number of relay outputs
0
Width
(mm)
35
Max. number of time switches
0
Model
Modular
Processing time (1K, binary operation)
(ms)
18
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
2
With optical interface
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
Yes
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
No
Redundancy
No
With display
No
Type of memory
RAM
Memory size
(kByte)
2048
Additional program memory possible
No
Rail mounting possible
No
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
Other
Height
(mm)
100
Depth
(mm)
160
SIL according to IEC 61508
None
Supporting protocol for DNP3
No
Supporting protocol for IEC 60870
No
Supporting protocol for IEC 61850 Ethernet
No
Long-Term Evolution (LTE)
No
Stock and logistics
Height
0.055 cm
Width
0.11 cm
Depth
0.12 cm
Packaging
box
Weight
0.247 kg
HS code
8537109199
Country of Origin
FR
