Schneider Electric
BMXP342020
PLC CPU-module
Manufacturer part number: BMXP342020
Serie: Modicon M340
EAN-code: 3595863910711
SKU Omnical: 1076346
Stock: 0.
Estimated lead time: 10 days *
PreOrder
S94
$
1,574.85
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

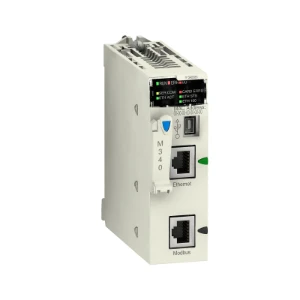

BMXP342020 Schneider Electric PLC CPU-module
Schneider Electric PLC CPU-module Modicon M340 - processor - USB/Modbus/ethernet
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of HW-interfaces industrial Ethernet
2
Number of digital inputs
1024
Number of digital outputs
1024
Number of analogue inputs
256
Number of analogue outputs
256
Supply voltage DC
(V)
24 - 24
Voltage type of supply voltage
DC
Number of relay outputs
0
Width
(mm)
35
Max. number of time switches
0
Max. number of addressable analogue I/O-ports
256
Max. number of addressable digital I/O-ports
1024
Model
Modular
Processing time (1K, binary operation)
(ms)
12
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
4
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
Yes
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
No
Redundancy
No
With display
No
Type of memory
NVRAM
Memory size
(kByte)
4096
Additional program memory possible
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
Yes
Rack-assembly possible
Yes
Suitable for safety functions
Yes
Category according to EN 954-1
1
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
100
Depth
(mm)
160
SIL according to IEC 61508
None
Supporting protocol for DNP3
No
Supporting protocol for IEC 60870
No
Supporting protocol for IEC 61850 Ethernet
No
Long-Term Evolution (LTE)
No
Stock and logistics
Height
5.5 cm
Width
11 cm
Depth
11.5 cm
Packaging
box
Weight
0.252 kg
HS code
8537109199
Country of Origin
FR
