Schneider Electric
C103100S
Switch disconnector
Manufacturer part number: C103100S
Serie: ComPacT NSX NA, new generation
EAN-code: 3606481999252
SKU Omnical: 4101672
Stock: 0.
Estimated lead time: 6 days *
PreOrder
S72
€
334,00
per item
€
243,49
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

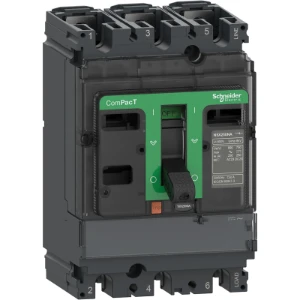

C103100S Schneider Electric Switch disconnector
Schneider Electric Switch disconnector ComPacT - Lastscheider - NSX100NA - AC - 3P - 100A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
100
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
Yes
Motor drive integrated
No
Voltage release optional
Yes
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Toggle
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP30
Version as reversing switch
No
Rated operating voltage
(V)
690 - 690
Rated short-time withstand current lcw
(kA)
1.8
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
100
Stock and logistics
Height
14 cm
Width
11.2 cm
Depth
19 cm
Packaging
box
Weight
1.776 kg
HS code
8536508000
