Schneider Electric
C1042B100
Trip block for power circuit-breaker
Manufacturer part number: C1042B100
Serie: ComPacT NSX, new generation
EAN-code: 3606482000810
SKU Omnical: 4101715
Stock: 0.
Estimated lead time: 11 days *
PreOrder
S72
$
568.26
per item
$
414.26
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

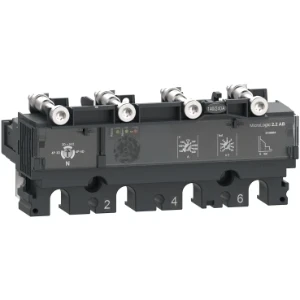

C1042B100 Schneider Electric Trip block for power circuit-breaker
Schneider Electric Trip block for power circuit-breaker ComPacT - Trip unit - NSX100 - AC - 4P4D - 100A - 2.2AB
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Overload release current setting
(A)
40 - 100
Initial value of the undelayed short-circuit release - setting range
(A)
1500
End value adjustment range undelayed short-circuit release
(A)
1500
Rated permanent current Iu
(A)
100
Number of poles
4
Short-circuit release function
Delayed
Voltage type for actuating
AC
Rated control supply voltage at AC 50 Hz
(V)
690 - 690
Rated control supply voltage at AC 60 Hz
(V)
690 - 690
With ground fault protection function
No
Type of motor protection
Electronic release
Stock and logistics
Height
0.068 cm
Width
0.098 cm
Depth
0.152 cm
Packaging
box
Weight
0.565 kg
HS code
8536303000
Country of Origin
FR
