Schneider Electric
C10F2TM100
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: C10F2TM100
Serie: ComPacT NSX, new generation
EAN-code: 3606481995452
SKU Omnical: 4101812
Stock: 0.
Estimated lead time: 11 days *
PreOrder
S72
$
393.46
per item
$
286.83
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

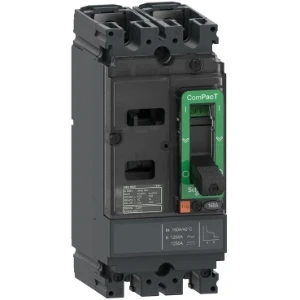

C10F2TM100 Schneider Electric Power circuit-breaker for trafo/generator/installation protection
Schneider Electric Power circuit-breaker for trafo/generator/installation protection ComPacT - Vermogenschakelaar - NSX100F - 18kA - AC/DC - 2P - 100A - TM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
100
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
18
Overload release current setting
(A)
100 - 100
Adjustment range undelayed short-circuit release
(A)
1000 - 1000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Yes
Number of poles
2
Position of connection for main current circuit
Front side
Type of control element
Toggle
Motor drive optional
No
Motor drive integrated
No
Degree of protection (IP)
IP40
Rated voltage
(V)
690 - 690
DIN rail (top hat rail) mounting optional
Yes
Complete device with protection unit
Yes
With integrated under voltage release
No
Stock and logistics
Height
0.079 cm
Width
0.13 cm
Depth
0.176 cm
Packaging
box
Weight
1.24 kg
HS code
8536209090
Country of Origin
PL
